Product Overview

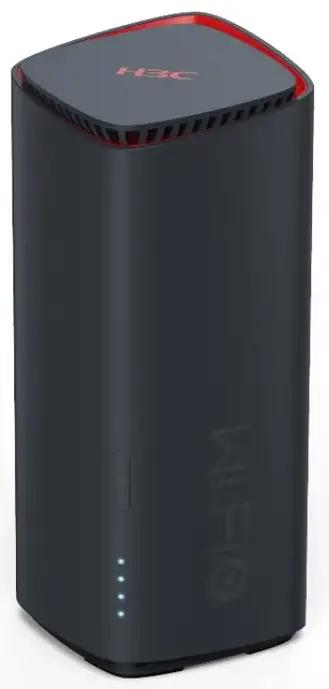

The H3C Magic BX54-EU is a premium Wi-Fi 6 (802.11ax) dual-band router engineered for users demanding high-speed and stable wireless connectivity. Offering up to 5378 Mbps total bandwidth (574 Mbps @ 2.4GHz and 4804 Mbps @ 5GHz), it ensures ultra-fast performance for streaming, gaming, and smart home use.
Powered by a dual-core 1.0 GHz CPU and 512 MB RAM, the router supports **4 built-in high-gain antennas** and **six ultra-high-power Skyworks FEMs** for expansive signal coverage. With EasyMesh support, it seamlessly extends your Wi-Fi throughout your home or office. Its security suite includes **WPA3, firewall, DMZ, anti-attack features**, and advanced parental controls.
Key Features
- Wi-Fi Standard: 802.11ax (Wi-Fi 6)
- Max Wireless Speed: 5378 Mbps total (2.4GHz: 574 Mbps, 5GHz: 4804 Mbps)
- Antennas: 4 internal omnidirectional high-gain antennas (2.4 GHz: 3 dBi, 5 GHz: 5 dBi)
- FEMs: 6 independent Skyworks ultra-high power front-end modules
- Mesh Support: EasyMesh ready
- CPU: Dual-core 1.0 GHz
- Memory: 512 MB
- Security: WPA3/WPA2, anti-squatting, firewall, DMZ, DoS attack protection
Advanced Network Features
- QoS: Intelligent traffic shaping
- Parental Controls: Time-based access control, deny/allow lists
- Guest Wi-Fi: Isolated guest access
- DDNS Support: NoIP, DynDNS
- VPN: PPTP Client, L2TP Client
- Virtual Server, Fast Packet Forwarding, Password Recovery
Connectivity & Hardware
- Ports: 4 × 10/100/1000Base-T Ethernet ports
- Buttons: Independent reset button, mesh function key, wireless optimization key
- LED Indicators: Front system LED; Rear 1× WAN + 3× LAN LEDs
- Power Supply: 12V ⎓ 2A
- Cooling: Passive
Wireless & Protocols
- Wireless Protocols: 2.4GHz: 802.11ax/n/g/b | 5GHz: 802.11ax/ac/n/a
- Spatial Streams: 2.4GHz: 2×2 MIMO | 5GHz: 4×4 MIMO
- Wireless Roaming: IEEE 802.11k/v supported
- IPv6: Supported
System Management
- Management Tools: H3C Magic App (iOS, Android), Web Interface
- Internet Modes: DHCP, PPPoE, Static IP, Wired/Wireless Repeating
- Operating Temperature: 0ºC – 40ºC
- Dimensions: 95mm × 95mm × 226mm
