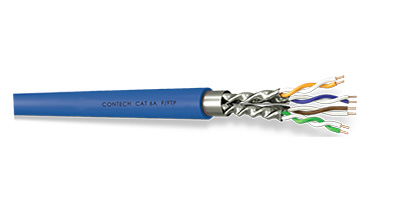

CONTECH's Category 6A F/FTP cables exceed Category 6A / Class EA specification. It is tested to 500 MHz frequency range and designed to support 10 Gigabyte applications to full 100 m. Extremely high pair-balance providing excellent EMC (Electro Magnetic compatibility), minimizing radiation, maximizing noise immunity and providing high alien cross-talk performance to F/FTP cabling systems. F/FTP (Twisted Pair – overall and individual Foil shield) cabling systems are installed for improved Alien Cross-talk performance.
Applications:
- Enterprise & Data Centre Networks: 10G Ethernet (10GBASE-T) backbone cabling.
- Residential & Commercial AV/IT & Financial Deployments.
- Education & Healthcare Facilities
- High-Speed PoE++ (802.3bt) Applications
- Future-Proof Installations
Key Features:
- Cat 6A supports frequencies up to 500 MHz .
- Cat6A Supports 10GBASE-T up to 100 m — ideal for data centres, enterprise LANs, and server rooms.
- F-FTP: Each pair is individually shielded, and an overall Foil shield reduces crosstalk and EMI (electromagnetic interference).
- Suitable for Power over Ethernet applications (PoE/PoE+/4PPoE) according to IEEE 802.3af, IEEE ,802.3at and 802.3bt Type 4 (PoE++)up to 90W.
- The optional outer LSZH jacket is flame-retardant and produces minimal smoke and zero halogen gases during combustion.
Standard:
- ISO/IEC 11801 Class EA.
- EN 50173-1 & EN 50288-11-1
- ANSI/TIA-568.2-D
- IEC 60332-1, (LSZH Version).
- RoHS & CE
Physical Specifications:
| Category | 6A |
| No. of Pair & Conductor | 4 PR /Solid bare copper / 23 AWG |
| Conductor Insulation & Size | HDPE / Outer Dia.1.36 ± 0.1 mm |
| Cable Type | F-FTP / AL—MYLA Foil around each pair and Overall Foil. |
| Outer Jacket Material & Size | LSZH/LSFRZH / Outer Dia. :7.50 ± 0.35mm |
| Min. Bend Radius Installation | 8x Cable-Ø |
| Operating Temperature | - 10°C to +65°C |
| Storage Temperature | - 20°C to +75°C |
Electrical Characteristics:
| Conductor resistance unbalance | ≤ 2% |
| Delay skew 4.0-100Mhz | ≤ 45 ns/100m |
| Max. DC resistance | ≤ 9.0 Ω/100m |
| Insulation Resistance | ≥5000 MΩ*km |
| Propagation Velocity at >10 MHz (NVP*c) | 74 % |
| Bandwidth | 500 MHz |
Transfer Characteristics:
| Freq. MHz | RL | ATT | NEXT | ACRF | PS NEXT | PS ACRF |
| ≥dB | ≥dB | ≥dB | ≥dB | ≥dB | ≥dB | |
| 4 | 19.0 | 4.2 | 63.0 | 52.2 | 60.5 | 48.2 |
| 25 | 17.0 | 10.2 | 50.0 | 35.3 | 47.3 | 32.3 |
| 100 | 12.0 | 20.9 | 39.9 | 23.3 | 37.1 | 20.3 |
| 300 | 6.6 | 40.6 | 30.3 | 12.4 | 27.3 | 9.4 |
| 500 | 6.0 | 49.3 | 26.1 | 9.3 | 23.2 | 6.3 |
Order Information:
| Part No. | Type of Class | Type of Cable | Conductor Size | Outer Jacket | Outer Jacket Color Options | Packaging |
| CS-C6AFF23 | CAT-6A | F-FTP | 23AWG | LSZH/LSFRZH | Blue/Aqua Green/Yellow | 500M - 1000M/Reel |
