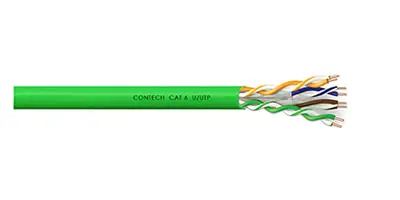

CONTECH Category 6 U/UTP cables are engineered to exceed Category 6 / Class E specifications, delivering high-performance connectivity for modern structured cabling systems. Tested up to 250 MHz, these cables are optimized to support Gigabit Ethernet applications, including 1000Base-T and 1000Base-TX over distances up to 90 meters.
Applications:
- Data Centre & Telecommunications.
- Enterprise & Office Networks.
- IP Surveillance & Security Systems.
- Residential & Commercial Installations.
- Versatile Use: Suitable for homes, offices, schools, retail, and hospitality networks.
Key Features:
- Cat 6 supports frequencies up to 250 MHz.
- Cat6 supports 1 Gbps up to 100 m; 10 Gbps over shorter distances (≤55 m) — ideal for data centres, enterprise LANs, and server rooms.
- Cat-6 U-UTP internal separators and tighter twists minimize alien crosstalk without shielding.
- Suitable for Power over Ethernet applications (PoE/PoE+/4PPoE) according to IEEE 802.3af, Type 3(PoE+)up to 60W.
- The optional outer LSZH jacket is flame-retardant and produces minimal smoke and zero halogen gases during combustion.
Standard:
- ISO/IEC 11801 Class E.
- EN 50173-1
- ANSI/TIA-568.2-D
- EC 60332-1, (LSZH Version)
- RoHS & CE
Physical Specifications:
| Category | 6 |
| No. of Pair & Conductor | 4 PR /Solid bare copper / 24 AWG |
| Conductor Insulation & Size | HDPE/ Outer Dia. 0.92 ± 0.1 mm |
| Cable Type | U-UTP / Un-Shielded |
| Outer Jacket Material & Size | PVC/LSZH /Outer Dia.:5.80 ± 0.35mm |
| Min. Bend Radius Installation | 8x Cable-Ø |
| Operating Temperature | -10°C to +65°C |
| Storage Temperature | - 20°C to +75°C |
Electrical Characteristics:
| Conductor resistance unbalance | ≤ 2% |
| Delay skew 4.0-100Mhz | ≤ 45 ns/100m |
| Max. DC resistance | ≤ 9.0 Ω/100m |
| Insulation Resistance | ≥5000 MΩ*km |
| Propagation Velocity at >10 MHz (NVP*c) | 69 % |
| Bandwidth | 250 MHz |
Transfer Characteristics:
| Freq. MHz | RL | NEXT | ACRF | PS NEXT | PS ACRF |
| ≥dB | ≥dB | ≥dB | ≥dB | ≥dB | |
| 4 | 21.0 | 64.1 | 52.1 | 61.8 | 49.1 |
| 25 | 19.0 | 51.5 | 36.2 | 49.1 | 33.2 |
| 100 | 14.0 | 41.8 | 24.2 | 39.3 | 21.2 |
| 200 | 11.0 | 36.9 | 18.2 | 34.3 | 15.2 |
| 250 | 10.0 | 35.3 | 16.2 | 32.7 | 13.2 |
Order Information:
| Part No. | Type of Class | Type of Cable | Conductor Size | Outer Jacket | Outer Jacket Color Options | Packaging |
| CS-C6XUU24 | CAT-6 | U-UTP | 24AWG | PVC/LSZH | Blue/Gray Green/White | 305MBox- 500M/Reel |
