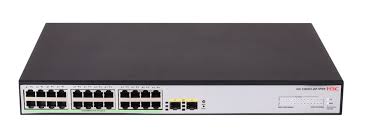

H3C S1600V2-26S LS EAthernet Switch With 24*10/100/100BASE-T Ports and 2*1G/10G SFP+Ports. (AC) (LS-1600V2-26S-GL)
H3C S1600V2 Ethernet switch product is independently developed by New H3C Technologies Co., Ltd.
(H3C). It is a web managed switch designed for network environments. It is easy to install, provides a
rich set of features, and is widely used in small and medium-sized enterprises, commercial chains, CCTV,
campuses, and other scenarios.
H3C LS-1600V2-26S-GL — Technical Specification
| Category | Specification |
|---|---|
| Model | LS-1600V2-26S-GL |
| Series | H3C S1600V2 |
| Device Type | Layer 2 Cloud Smart Managed Gigabit Switch |
| Switching Layer | Layer 2 |
| Ethernet Ports | 24 × 10/100/1000BASE-T |
| Uplink Ports | 2 × 1G/10G SFP+ |
| Total Ports | 26 |
| PoE Support | ❌ Not supported |
| Switching Capacity | 88 Gbps |
| Forwarding Rate | 65.482 Mpps |
| MAC Address Table | 8K |
| VLAN Support | Up to 4094 VLANs |
| Spanning Tree | STP / RSTP |
| Link Aggregation | LACP supported |
| QoS | SP, WRR, SP+WRR |
| IGMP Snooping | Supported |
| DHCP Features | DHCP Snooping, DHCP Relay |
| Security Features | 802.1X, ACL, Port Security, Storm Control |
| Loop Protection | Supported |
| Management | Web GUI, CLI, SNMP, Cloud (Cloudnet) |
| CPU | 800 MHz |
| Memory | 128 MB RAM / 16 MB Flash |
| Surge Protection | 6KV |
| Cooling | Fan-less (silent design) |
| Input Power | AC 100–240V, 50/60Hz |
| Power Consumption | ~8W idle / ~22W full load |
| Dimensions | 440 × 160 × 44 mm |
| Weight | ≤ 2.5 kg |
| Operating Temperature | -5°C to 50°C |
| Humidity | 5%–95% (non-condensing) |
