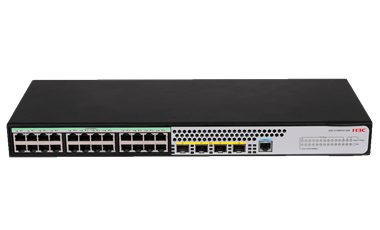

H3C Layer 2 Switch 48x1GE PoE+ Ethernet Ports & 4x1GE/10GE SFP+ Ports (PoE Budget 370) (LS-1850V2-52X-PWR-GL)
H3C S1850V2-X series Ethernet switch is the layer 2 Gigabit access switch developed and designed by New H3C Technologies Co., Ltd. (H3C) especially for meeting high-performance network requirements. Based on the high-performance access, it offers abundant security access policies and enhanced network manageability and maintenance. This makes it ideal for diversified network building scenarios, including government, small and medium-sized enterprises, general and vocational education, security monitoring, and hotels.
H3C LS-1850V2-52X-PWR-GL Technical Specification
| Category | Specification |
|---|---|
| Model | LS-1850V2-52X-PWR-GL |
| Series | H3C S1850V2-X |
| Device Type | Layer 2 Managed Gigabit PoE+ Switch |
| Switching Layer | Layer 2 |
| Ethernet Ports | 48 × 10/100/1000BASE-T (PoE+) |
| Uplink Ports | 4 × 1G/10G SFP+ |
| PoE Standard | IEEE 802.3af / IEEE 802.3at |
| PoE Type | PWR (Standard PoE+) |
| Total PoE Budget | 370W |
| Max PoE per Port | Up to 30W |
| Switching Capacity | 176 Gbps |
| Forwarding Rate | 130.952 Mpps |
| MAC Address Table | 16K |
| VLAN Support | Up to 4094 VLANs |
| Spanning Tree | STP / RSTP / MSTP |
| Link Aggregation | LACP supported |
| QoS | SP, WRR, SP+WRR |
| IGMP Snooping | Supported |
| DHCP Features | DHCP Snooping, DHCP Relay, Option 82 |
| Security Features | 802.1X, ACL, Port Security, IP Source Guard |
| IPv6 Support | Yes |
| Stacking | IRF2 (stacking supported within series) |
| CPU | 800 MHz (1 Core) |
| Memory | 512 MB SDRAM / 256 MB Flash |
| Surge Protection | 6KV |
| Cooling | 3 Built-in Fans |
| Input Power | AC 100–240V, 50/60Hz |
| Power Consumption | ~36W (idle) / up to ~467W (full PoE load) |
| Dimensions | 440 × 400 × 43.6 mm |
| Weight | ≤ 6 kg |
| Operating Temperature | -5°C to 50°C |
| Humidity | 5%–95% (non-condensing) |
