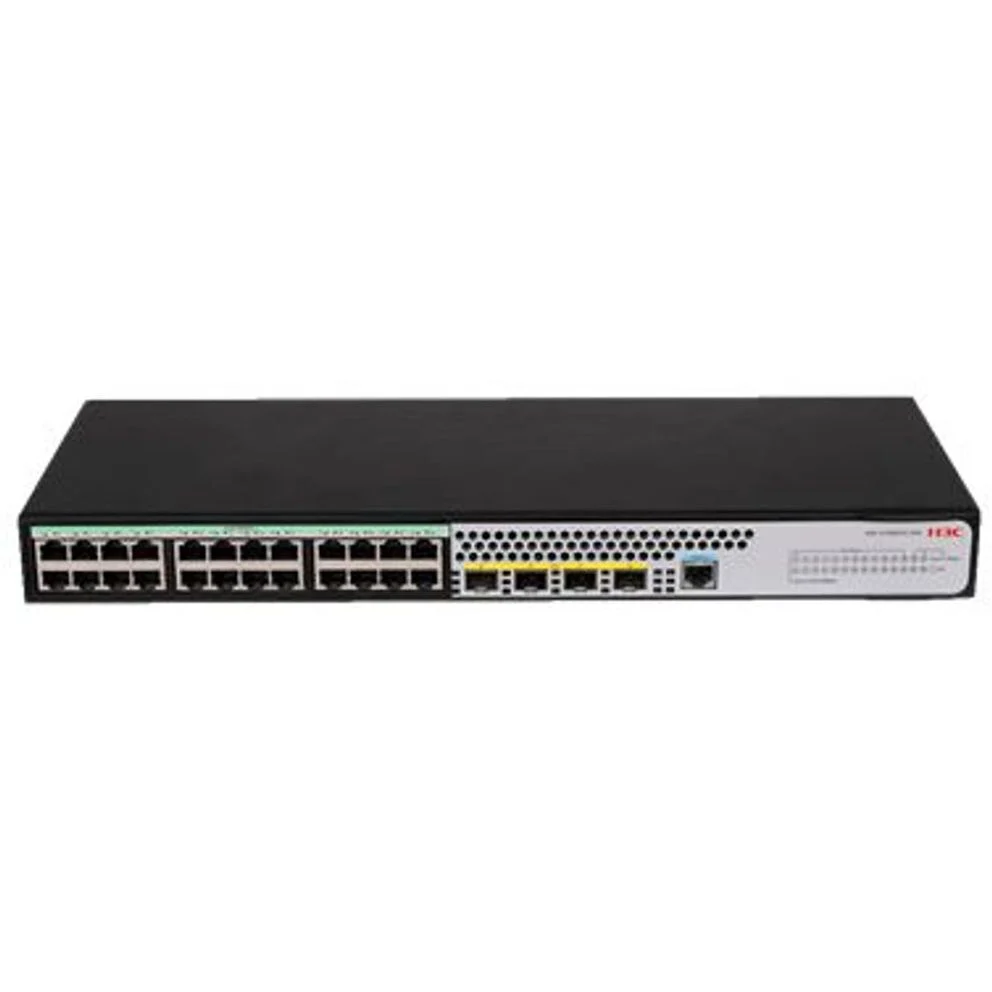

LS-1850V2-28X-HPWR-GL [(H3C Layer 2 Switch 24x1GE PoE+ Ethernet Ports & 4x1GE/10GE SFP+Ports) (PoE Budget 370W)]
The LS-1850V2-28X-HPWR-GL is a Layer 2 Gigabit Ethernet switch designed for small and medium businesses (SMBs) with high port density and PoE+ functionality. It offers basic network management capabilities through a web interface for configuration, monitoring, and troubleshooting. The switch offers a significant number of Gigabit Ethernet ports, likely 28 x 10/100/1000 Mbps RJ45 ports, for connecting devices to the network. It includes PoE+ functionality, supporting the IEEE 802.3at standard, which delivers up to 30W of power per port, eliminating the need for separate power adapters. Other specifications include 4 additional SFP ports for connecting to fiber optic cabling for longer distances or core network switches. The switch is rack-mountable for space-saving installation in network racks and has a web interface for management. Benefits for SMBs include increased scalability, PoE+ support, and basic management features for configuration, monitoring, and troubleshooting.
H3C LS-1850V2-28X-HPWR-GL — Technical Specification
| Category | Specification |
|---|---|
| Model | LS-1850V2-28X-HPWR-GL |
| Series | H3C S1850V2-X |
| Device Type | Layer 2 Managed Gigabit PoE+ Switch |
| Switching Layer | Layer 2 |
| Ethernet Ports | 24 × 10/100/1000BASE-T (PoE+) |
| Uplink Ports | 4 × 1G/10G SFP+ |
| PoE Standard | IEEE 802.3af / IEEE 802.3at |
| PoE Type | HPWR (High Power PoE+) |
| Total PoE Budget | 370W |
| Max PoE per Port | Up to 30W |
| Switching Capacity | 128 Gbps |
| Forwarding Rate | 95.232 Mpps |
| MAC Address Table | 16K entries |
| VLAN Support | Up to 4094 VLANs |
| Link Aggregation | Supported (LACP) |
| Spanning Tree | STP / RSTP / MSTP |
| QoS | SP, WRR, SP+WRR |
| IGMP Snooping | Supported |
| DHCP Features | DHCP Snooping, Relay, Option 82 |
| Security Features | 802.1X, ACL, Port Security, IP Source Guard |
| Loop Protection | Supported |
| IPv6 Support | Yes |
| Stacking | IRF2 (supported within series) |
| CPU | 1 Core, 800 MHz |
| Memory | 512 MB SDRAM / 256 MB Flash |
| Surge Protection | 6KV |
| Cooling | 3 Built-in Fans |
| Input Power | AC 100–240V, 50/60Hz |
| Power Consumption | ~19W (min) / ~448W max (PoE full load) |
| Dimensions | 440 × 260 × 43.6 mm |
| Weight | ≤ 6 kg |
| Operating Temperature | -5°C to 50°C |
| Humidity | 5%–95% (non-condensing) |
