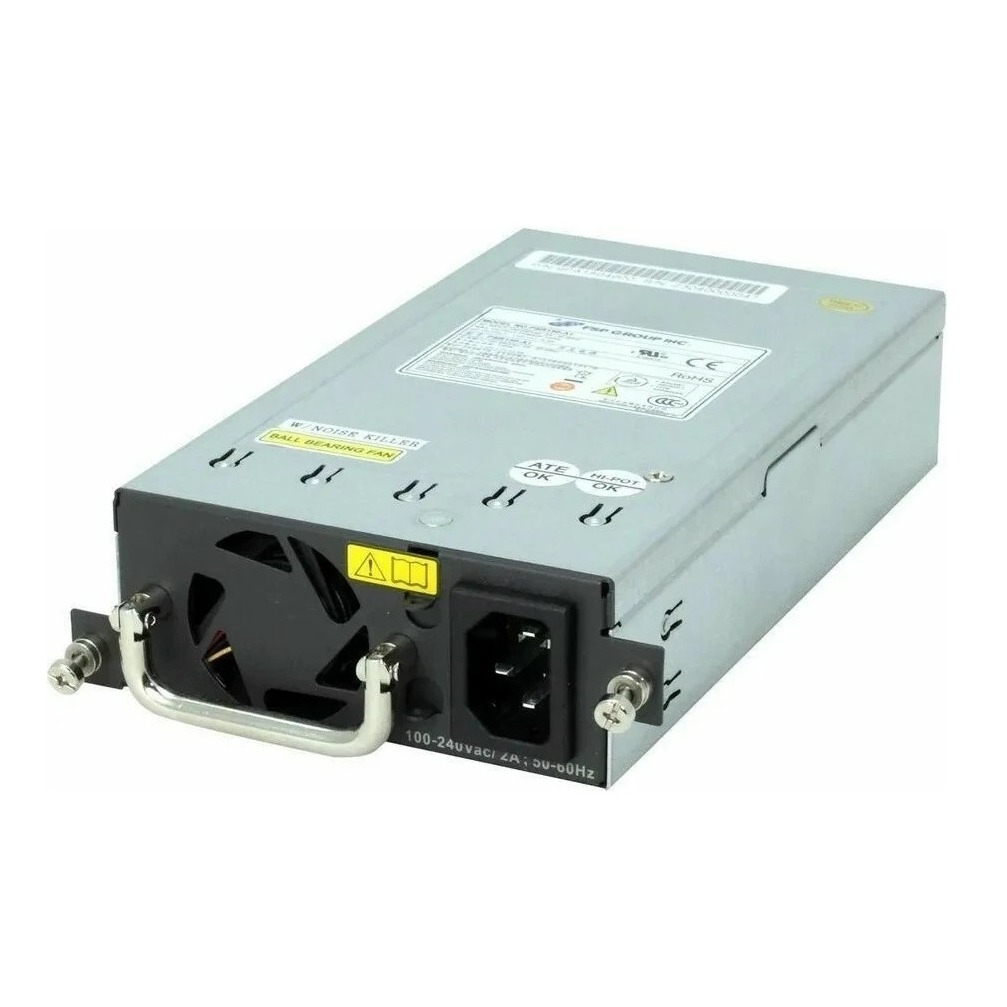

PSR75-12A-G (L75WAC Pluggable Power Supply Module) (For 6520X-24ST)
SR75-12A is a DC-output power module that supports both AC and DC input. It provides a maximum output of 75 W.
The power module supports 1+1 redundancy and load sharing and is removable. It also provides overcurrent, undervoltage, overvoltage, short circuit, overtemperature, and output current limiting protections.
Technical specifications
Item | Specifications | |
AC input | Rated voltage range | 100 VAC to 240 VAC @ 50 Hz or 60 Hz |
Max voltage range | 90 VAC to 290 VAC @ 47 Hz or 63 Hz | |
Max input current | 2.5 A | |
High-voltage DC input | Rated voltage range | 240 VDC |
Max voltage range | 180 VDC to 320 VDC | |
Max input current | 1 A | |
Output voltage | 12 V | |
Output current | 6.3 A | |
Max output power | 75 W | |
Dimensions (H × W × D) | 41.1 × 101.6 × 177 mm (1.62 × 4 × 6.97 in) | |
Weight | 0.72 kg (1.59 lb) | |
Operating temperature | –10°C to +55°C (14°F to 131°F) | |
Relative humidity | 5% to 95%, noncondensing |
