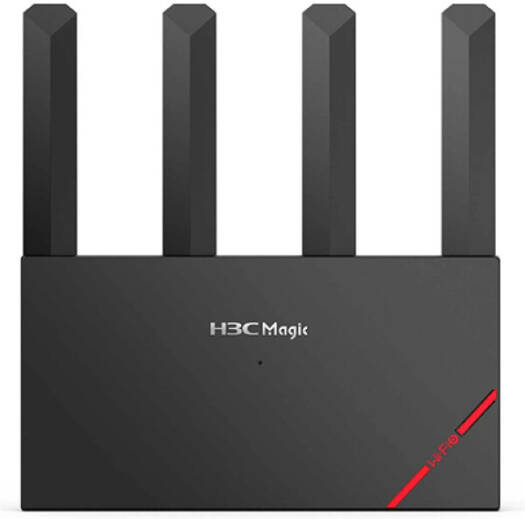

H3C Magic NX30-EU 802.11ax 3000M Gigabit Dual Band Wi-Fi 6 (S.NO. 219801A4EP7230K500Q4)
H3C Magic NX30 Gigabit Dual Band Wi-Fi 6 Router is a new product designed by New H3C Intelligence Terminal Co., Ltd. for users requiring
high-quality networks. NX30 uses the latest wireless protocol technology of Wi-Fi 6 (802.11ax). The wireless rate of the integrated machine
is 2,976 Mbps, with the wireless rate of 2.4 GHz frequency band increased to 574 Mbps and that of 5 GHz frequency band increased to
2,402 Mbps. It uses four external high gain antennas and supports EasyMesh.
Specifications
| Fixed port | Four 10/100/1000Base-T Ethernet ports |
| Wireless | 4 external 5dBi high gain omnidirectional antennas |
| CPU | Dual-core 1.0 GHz |
| Memory | 256 MB |
| Dimensions (W×D×H) | 210mm x222mm x 64mm |
| Indicator | Front LED: system status indicator |
| Power supply | 12V⎓1A |
| Wireless protocol | 2.4 GHz: 802.11ax/n/g/b 5 GHz: 802.11ax/ac/n/a |
| Spatial flow | 2.4 GHz 2x2 MIMO 5 GHz 2x2 MIMO |
| Wireless bandwidth | 2.4G HT20/HT40 5G HT20/HT40/HT80/HT160 |
| Wireless rate | Dual-frequency concurrency 2,976 Mbps 2.4 GHz: 574 Mbps & 5 GHz: 2,402 Mbps |
| Wireless roaming | Support of IEEE 802.11k/v |
| Internet connection | Routing mode: DHCP/PPPoE/Static IP Bridge mode: wired relay/wireless relay |
| IPv6 | Support |
| Security features | WPA3 encryption Anti-Wi-Fi squatting/anti-attack Firewall, DMZ, DoS attacks |
| Network management | Guest Wi-Fi, access allow list/deny list, parental controls based on multiple periods, IP-based traffic control, Wi-Fi timing switch |
| Features | Qos traffic shaping, broadband password retrieval, packet fast-forwarding engine, virtual server, DDNS(NoIP, DynDNS), VPN(PPTP Client,L2TP Client) |
| Management method | Support for H3C Magic APP (iOS, Android), Web |
| Operating temperature | 0°C–40°C |
