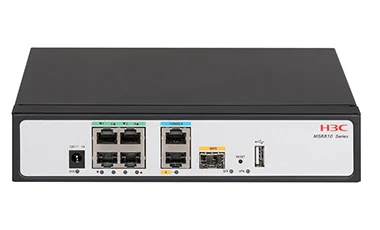

H3C MSR610 Enterprise 6-Port Gigabit Ethernet Router
The H3C WSG1812X-PWR Wireless Integrated Multi-Service Gateway is well designed and positioned for SMB network. It features gateway, security and AC function integration, reducing the number of devices and TCO in network. It adopts the innovative Comware V7 platform (referred to as V7 hereafter). V7 comes with the standard granular user control management, comprehensive RF resource management, 7x24 wireless security control, fast layer-2 and layer-3 roaming, strong QoS and IPv4/IPv6 dual stack. V7 adds in various novel wireless technologies such as multi-core control plane, Bonjour and Hotspot 2.0. It also supports multiple network configurations such as cloud management. When paired with H3C SMB APs (See ordering information for details), it serves as an ideal access control solution for WLAN access of SMB network.
Documents
Specifications
| Forwarding Performance In Service (IMIX) | 200 Mbps |
| CPU | 800MHz |
| Memory | 1 GB |
| Internal Flash | 256 MB |
| External Flash | NA |
| USB ports | 1 ( no SIM card function ) |
| Console ports | 1 |
| WAN ports | 1 × GE copper port 1 × SFP port |
| LAN port | 4 × GE ports (can be configured as WAN interfaces) |
| Max power consumption | 24W |
| Power voltage(device) | DC 12V 2A |
| Power voltage(adapter) | External power adapter: 100 VAC to 240 VAC @ 50 Hz/60 Hz |
| Dimensions (W × D × H) | 210 x 140 x 44 mm |
