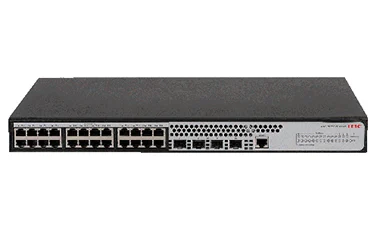

H3C S1850V2-28P-EI L2 Ethernet Switch
H3C S1850V2-EI series Ethernet switch is the layer 2 Gigabit access switch with GE up-link ports, it is developed and designed by New H3C Technologies Co., Ltd. (H3C) especially for meeting high-performance network requirements. Based on the high-performance access, it offers abundant security access policies and enhanced network manageability and maintenance. This makes it ideal for diversified network building scenarios, including government, small and medium-sized enterprises, general and vocational education, security monitoring, and hotels.
Specifications
| Switching capacity | 56 Gbps |
| Forwarding capacity | 42 Mpps |
| CPU | 1 Core, 800MHz |
| Flash/SDRAM | 256MB/512MB |
| Management port | 1 console port |
| Networking interface | 24 10/100/1000Bas e-T electrical ports 4 1000Base-X SFP optical port |
| Input voltage | AC: The rated voltage range is 100V to 240V, 50/60Hz |
| Total power consumption | MIN: AC: 9W MAX: AC: 23W |
| Fan number | Fan-less |
| MTBF(Year) | 150.86 |
| Operating temperature | -5℃ ~ 50℃(normal operating temperature), -5℃ ~ 45℃(When using transceiver modules with maximum transmission distance < 80km) -5℃ ~ 40℃(When using transceiver modules with maximum transmission distance ≥ 80km) |
| Storage temperature | -40℃ ~ 70℃ |
