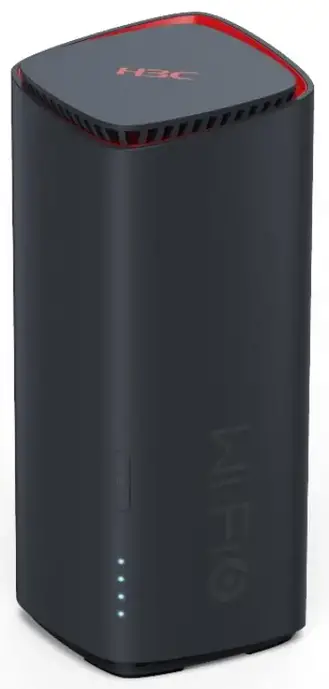

H3C Magic BX54-EU 802.11ax 5400M Gigabit Dual Band Wi-Fi 6
H3C BX54 Gigabit Dual Band Wireless Router is a new Wi-Fi 6 router designed by New H3C Intelligence Terminal Co., Ltd. for users requiring high-quality networks. BX54 uses the latest wireless protocol technology of Wi-Fi 6 (802.11ax). The wireless rate of the integrated machine
is 5,378 Mbps, with the wireless rate of 2.4 GHz frequency band increased to 574 Mbps and that of 5 GHz frequency band increased to 4,804 Mbps. It uses four built-in high gain antenna and six independent ultra-high power Skyworks FEMs, and supports EasyMesh. With larger, flexible network coverage, it meets a variety of household needs.
Specifications
| Fixed port | Four 10/100/1000Base-T Ethernet port Independent reset key, function keys (Mesh, wireless optimization) |
| Wireless | 4 built-in high gain omnidirectional antennas (2.4 GHz 3dBi & 5 GHz 5dBi) |
| CPU | Dual-core 1.0 GHz |
| Memory | 512 MB |
| Indicator | Front LED: system status indicator Rear LED: 1 WAN port status indicator, 3 LAN port status indicators |
| Dimensions (W×D×H) | 95mm x 95mm x 226mm |
| Power supply | 12V⎓2A |
| Wireless protocol | 2.4 GHz: 802.11ax/n/g/b 5 GHz: 802.11ax/ac/n/a |
| Spatial flow | 2.4 GHz 2x2 MIMO 5 GHz 4x4 MIMO |
| Wireless rate | Dual-frequency concurrency 5,378 Mbps 2.4 GHz: 574 Mbps & 5 GHz: 4,804 Mbps |
| Wireless roaming | Follow-up supporting of 11k/v |
| Internet connection | Routing mode: DHCP/PPPoE/Static IP Bridge mode: wired relay/wireless relay |
| IPv6 | Support |
| Security features | WPA-PSK/WPA2-PSK//WPA3 encryption Anti-Wi-Fi squatting/anti-attack Firewall, DMZ, DoS attacks |
| Network management | Guest Wi-Fi, access allow list/deny list, parental controls based on multiple periods, IP-based traffic control, Wi-Fi timing switch |
| Features | Qos traffic shaping, broadband password retrieval, packet fast-forwarding engine, virtual server, DDNS(NoIP, DynDNS), VPN(PPTP Client,L2TP Client) |
| Management method | Support H3C Magic App (iOS, Android), Web |
| Operating temperature | 0ºC–40ºC |
