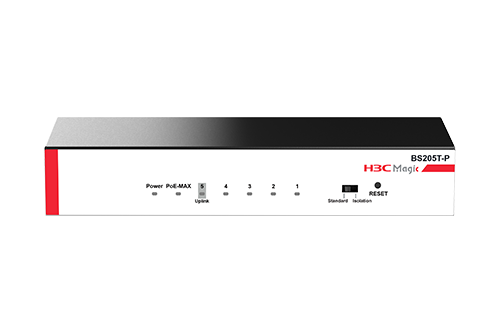

H3C Magic BS205T-P-UK Ethernet Switch (5GE+PoE, DC)
H3C Magic BS205T-P is a new generation of Gigabit unmanaged green PoE switch launched by H3C. It is easy to install, provides a rich set of features, and is widely used in small and medium-sized enterprises, commercial chains, hotels, campuses, and other scenarios.
Specifications
| Dimensions (WxDxH) | 27 × 155 × 58 mm (1.06 × 6.10 × 2.28 in) |
| Ports | 5 × 10/100/1000BASE-T copper ports |
| Operating mode | Standard, Isolation |
| MAC address entries | 2K |
| Switching capacity | 10 Gbps |
| Forwarding capacity | 7.4 Mpps |
| packet buffering | 1 Mbit |
| Switching mode | Store-and-forward switching |
| PoE+ | PoE+ supported Supports PoE Power up to 57 W for all PoE ports (4 PoE ports) Supports PoE Power up to 30 W for each PoE port |
| Power | 54 V DC, 1.17 A |
| Auto-MDI/MDIX | Yes |
| Cooling method | Natural cooling |
| Operating temperature/storage temperature | 0°C to 40°C (32°F to 104°F)/–40°C to +70°C (–40°F to +158°F) |
| Certifications | CE,RoHS |
| MTBF | ≥50000hours |
| Installation method | Desktop-mount and wall-mount |
