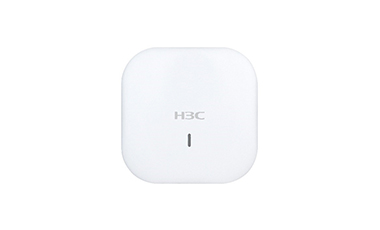

H3C WA6126 Internal Antennas Access Point
H3C WA6126 is a Wi-Fi 6 (802.11ax) access point (AP) individually developed by New H3C Technologies Co., Ltd. (H3C). The AP adopts a dual-band and six-stream design with a maximum access rate of 5.375 Gbps. For 5 GHz radio 4 spatial streams, the maximum negotiation rate is 4.8 Gbps. For 2.4 GHz radio 2 spatial streams, the maximum negotiation rate is 0.575 Gbps. It meets the high bandwidth and high concurrency requirements of common high-density indoor scenarios.
Specifications
| Dimensions (excluding antenna connectors and mounting accessories) | 35 x 185 x 155 mm (H x W x D) |
| Ethernet interface | 1 × 100/1000M/2.5G electrical port 1 × 100/1000M electrical port |
| PoE | 2.5GE: 802.3at/af |
| Local power supply | 54V DC |
| Console port | 1 |
| USB port | 1 |
| Built-in antenna | Internal Omni-directional antenna, 4dBi antenna gain @2.4GHz, 4dBi antenna gain @5GHz |
| Working frequencies | 802.11ax/ac/n/a: 5.725 GHz - 5.850 GHz; 5.47 GHz - 5.725 GHz; 5.15 GHz - 5.35 GHz, 802.11ax/b/g/n: 2.4 GHz - 2.483 GHz |
| Modulation technology | OFDM: BPSK@6/9Mbps, QPSK@12/18Mbps, 16-QAM@24Mbps, 64- QAM@48/54Mbps, DSSS: DBPSK@1Mbps, DQPSK@2Mbps, CCK@5.5/11Mbps, MIMO-OFDM (11n): MCS 0-31, MIMO-OFDM (11ac): MCS 0-9, MIMO-OFDM (11ax): MCS 0-11 |
| Transmit power (combined power) | 2.4G: 23 dBm 5G: 26 dBm (Varies depending on local laws and regulations) |
| Reset/restoration to factory default | Supported |
| State LED | Yellow/green/blue |
| Power consumption | ≤ 17.6 W (without USB feature) ≤ 35.1 W (with USB feature) |
| Radio frequency certification | FCC Part 15, EN 300 328, EN 301 893, and MIIT SRRC |
