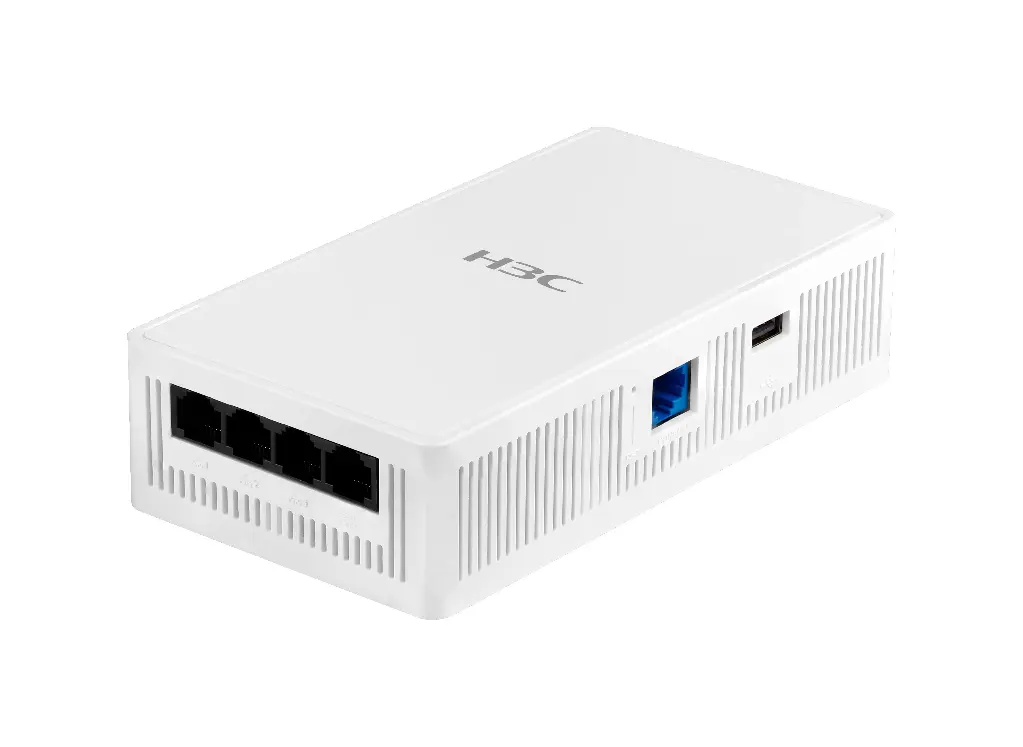

H3C WA6120H Walljack Internal Antennas
H3C WA6120H is a Wi-Fi 6 (802.11ax) wall-plate access point (AP) individually developed by New H3C Technologies Co., Ltd. (H3C). It can be widely applied to scenarios such as enterprises, schools, and healthcare.
The AP adopts a dual-band and four-stream design with a maximum access rate of 1.775 Gbps. For 5 GHz radio 2 spatial streams, the maximum negotiation rate is 1.2 Gbps. For 2.4 GHz radio 2 spatial streams, the maximum negotiation rate is 0.575 Gbps.
Specifications
| Dimensions (excluding antenna connectors and mounting accessories) | H3C WA6120H Walljack Internal Antennas |
| Fixed port | UpLink：10/100/1000M×1，RJ-45 LAN：10/100/1000M×4，RJ-45 |
| POE_OUT | Supported（Port LAN-4） |
| PoE | 802.3af |
| Local power supply | 54V DC |
| Console port | 1 |
| USB port | 1 |
| Built-in antenna | Internal Omni-directional antenna 3dBi antenna gain @2.4GHz 4dBi antenna gain @5GHz |
| Working frequencies | 802.11ax/ac/n/a: 5.725 GHz - 5.850 GHz; 5.47 GHz - 5.725 GHz; 5.15 GHz - 5.35 GHz 802.11ax/b/g/n: 2.4 GHz - 2.483 GHz |
| Modulation technology | OFDM: BPSK@6/9Mbps, QPSK@12/18Mbps, 16-QAM@24Mbps, 64- QAM@48/54Mbps DSSS: DBPSK@1Mbps, DQPSK@2Mbps, CCK@5.5/11Mbps MIMO-OFDM (11n): MCS 0-15 MIMO-OFDM (11ac): MCS 0-9 MIMO-OFDM (11ax): MCS 0-11 |
| Transmit power (combined power) | 2.4G: 23 dBm 5G: 23 dBm (Varies depending on local laws and regulations) |
| Power consumption | ≤30.0W（include PoE_OUT/USB） ≤12.5W（exclude PoE_OUT/USB） If the PoE-OUT function is enabled, it is required to use 802.3at/bt protocol to power the device |
| Reset/restoration to factory default | Supported |
| Operating temperature/storage temperature | -10ºC to +55ºC/-40ºC to +70ºC |
| Radio frequency certification | FCC Part 15, EN 300 328, EN 301 893, and MIIT SRRC |
