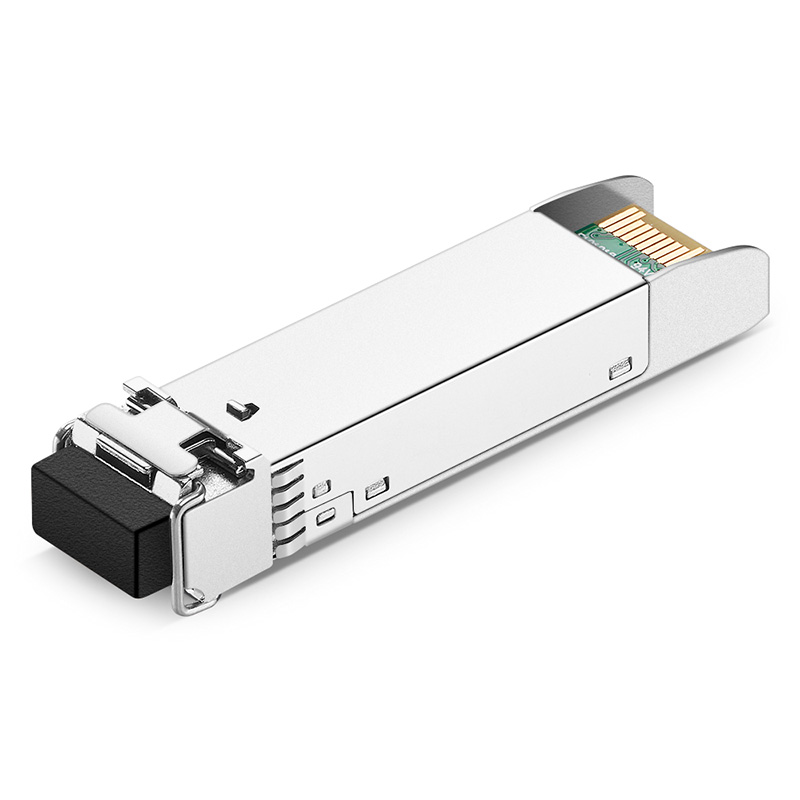

SFP-GE-SX-MM850-A 1000BASE-SX SFP Transceiver
H3C SFP-GE-SX-MM850-A compatible SFP transceiver supports up to 550m link lengths over multi-mode fiber (MMF) using a wavelength of 850nm via an LC connector. Each SFP transceiver module is individually tested to be used on a series of H3C switches, routers, servers, network interface card (NICs) etc. Featuring low power consumption, the hot swappable 1G SFP transceiver is ideal for Internet Service Provider (ISP) Gigabit Ethernet communication links, Enterprise LAN & SAN Networks, Data Center LAN & SAN Networks and other optical links.
Specifications
| H3C Compatible | SFP-GE-SX-MM850-A |
| Form Factor | SFP |
| Max. Data Rate | 1.25Gbps |
| Wavelength | 850nm |
| Max. Cable Distance | 550m@50/125µm OM2 MMF 275m@62.5/125µm OM1 MMF 220m@62.5/125µm FDDI MMF |
| Connector | Duplex LC |
| Media | MMF |
| Transmitter Type | VCSEL |
| Receiver Type | PIN |
| DDM/DOM | Supported |
| TX Power | -9.5 ~ - 3dBm |
| Receiver Sensitivity | < -17dBm |
| Typical Power Consumption | ≤0.8w |
| Extinction Ratio | >9dB |
| EMC (Electro Magnetic Compatibility) | Supported |
| Protocols | IEEE 802.3z, SFF-8472, SFP MSA (INF-8074i) Compliant |
| Warranty | 5 Years |
